Your plan set. Ready when you are.

Turn an address, site evidence, and exact equipment into one governed project model. See the roof, electrical topology, jurisdiction rules, and missing proof come together in a living plan room.

Enter the plan room Explore the live model
Google Solar evidenceOfficial equipment specsFail-closed AHJ gates

Los Angeles rule-pack research is active. Drafts can be saved now; paid permit export stays locked until the current authority and engineering review gates pass.

ROOF MODEL12 facetsVector traced
AUTHORITYLADBSFail closed
22 modules reconciled
UPDATED SAMPLE · PV-1 · SHEET 03/14
Current 14-sheet samplePV site plan with measured roof geometry
LADWP formatREV 0PV-1

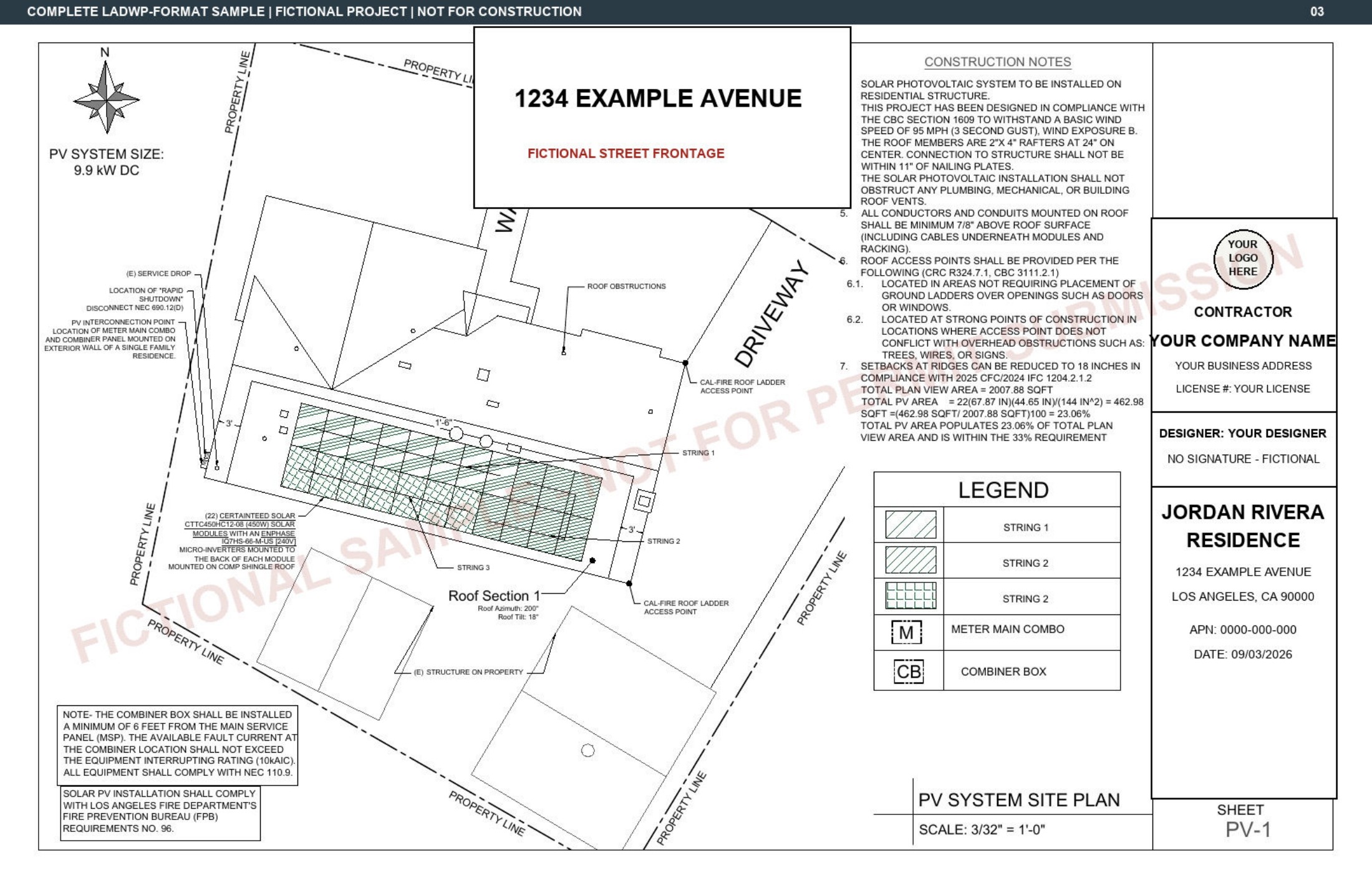

Fictional Los Angeles PV-1 site plan showing the measured structure outline, roof-mounted solar array, equipment locations, plan north, notes, and title blockOpen all 14 sheets
22 modules coordinated12 traced roof facets9.900 kW DCOpen full 14-sheet sample
ADDRESSJURISDICTIONSITE EVIDENCEENGINEERING MODELREVIEW GATE

How it works

From field inputs to a reviewable set

  1. 01

    Submit verified inputs

    Create an account and enter verified project, electrical, roof, and equipment details. Google Solar roof evidence and official equipment documents attach where available.

  2. 02

    We draft every sheet

    GoPlanSets assembles the cover, site, roof, electrical, placard, battery, and specification sheets, then checks shared values across the set.

  3. 03

    Review, edit, export

    Open the editable plan set project, resolve anything the checks flag, and download the PDF. The set stays a draft until a qualified designer or engineer reviews it.

Inside every set

Inspect a complete Los Angeles permit-format sample

14 coordinated sheets, from cover through equipment specifications

Built from a real LADWP-format drawing package and privacy-sanitized with a fictional owner, address, parcel number, meter identifier, and site context. The sample is marked not for construction or permit submission.

View the full sample PDF

  • T-1 / T-2

    Cover & General Notes

    Project data, code references, and the drawing index for the set.

  • PV-1

    Site Plan

    Property outline, structures, and equipment locations from your site inputs.

  • PV-2 / PV-3

    Roof Layout

    Module placement with ridge, eave, and fire setback lines drawn to scale.

  • E-1 / E-1.1

    Single Line Diagram

    PV source circuits, inverter, interconnection, and the conductor schedule.

  • E-2

    Placards & Labels

    The label set for disconnects, conduit runs, and the point of interconnection.

  • E-3 / S-*

    Battery & Specifications

    Storage placement, review notes, and exact manufacturer source documents.

Validation

Checks that read across sheets

A plan set fails in review when its sheets disagree. GoPlanSets treats the set as one model, so a change on the roof layout is checked against the single line diagram and the labels before you export anything.

Checks assist review. They do not replace it.

  • PassRoof array module count matches the SLD string total
  • PassExact equipment models matched to official spec sources
  • Needs inputBusbar 120% rule needs a main breaker rating

Pricing

Simple pricing by project scope

Solar only

$75

Residential photovoltaic plan set

Battery only

$75

Residential energy-storage plan set

Solar + battery

$100

One coordinated combined plan set

EV charger only

$50

Standalone EV charging plan set

Add an EV charger plan for $25

Available with a solar-only, battery-only, or combined solar + battery project.

Choose your scope

Every project includes

  • Full sheet set drafted from your verified inputs
  • Cross sheet validation report for the whole set
  • Editable plan set project in the workspace
  • PDF export after the jurisdiction and engineering gates pass
  • Google Solar roof evidence when coverage is available
  • Matched manufacturer specification sheets
  • Support at admin@gradeoptic.com
Start a project

One-time pricing. Nothing recurring.

Every result is a draft pending review by a qualified designer or engineer.

Where we stand

Drafts by design

GoPlanSets exists to do the drafting and the consistency work, not to replace the professionals who carry the project. The boundaries below are printed on every set we produce.

General notes

  1. 1.Every plan set produced by GoPlanSets is a draft pending review by a qualified designer or engineer.
  2. 2.GoPlanSets does not provide engineering services or promise AHJ acceptance. Professional judgment stays with you and your reviewer.
  3. 3.First launch covers California residential rooftop PV and battery projects.
  4. 4.GoPlanSets is built and operated by Grade Optic. Questions go to admin@gradeoptic.com.
